Specifications of Neutral Grounding Resistor：

Faulty current: 1-5000A

System voltage: 0.38KV-100KV (3, 6, 10, 35)

Heating time: 5S, 10S, 30S, 60S, lasting

Resistance (20 ° C): 0.01-1500 Ω

Temperature rise: short-term temperature rise (10-60S) maximum does not exceed 760 °C, Continuous temperature rise up to 385 ° C

Maintenance free, quick and easy to replace

Compact structure and easy installation

Enclosure protection rating: IP20-IP56

Optional isolation switch, auxiliary switch, heater, CT, monitor and other accessories

Characteristics of Neutral Grounding Resistor：

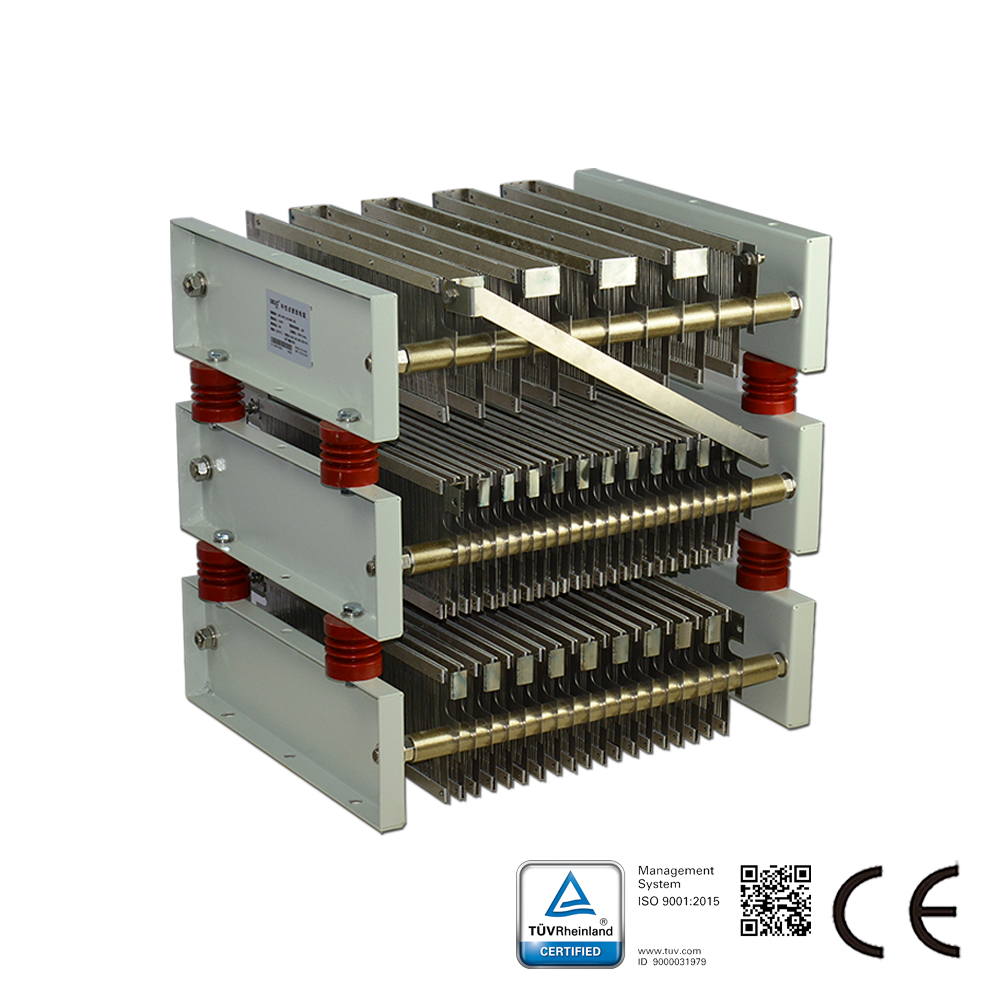

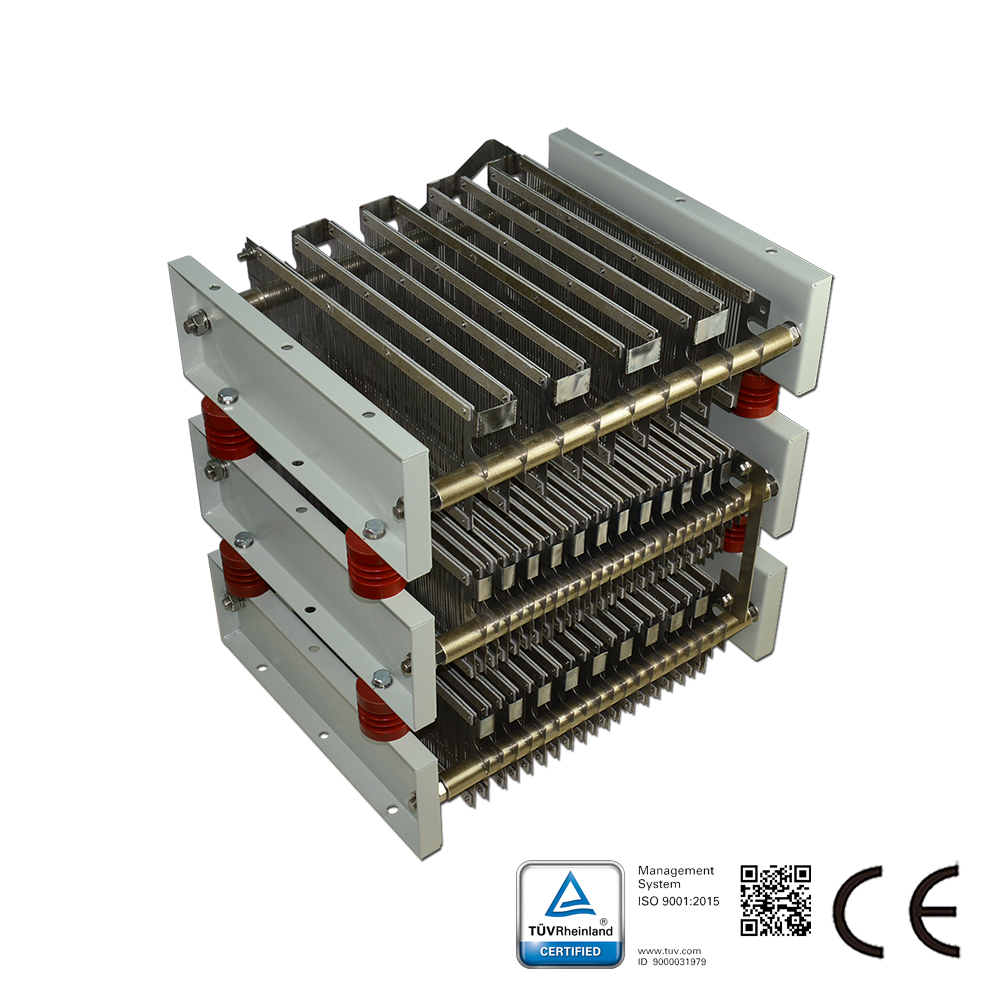

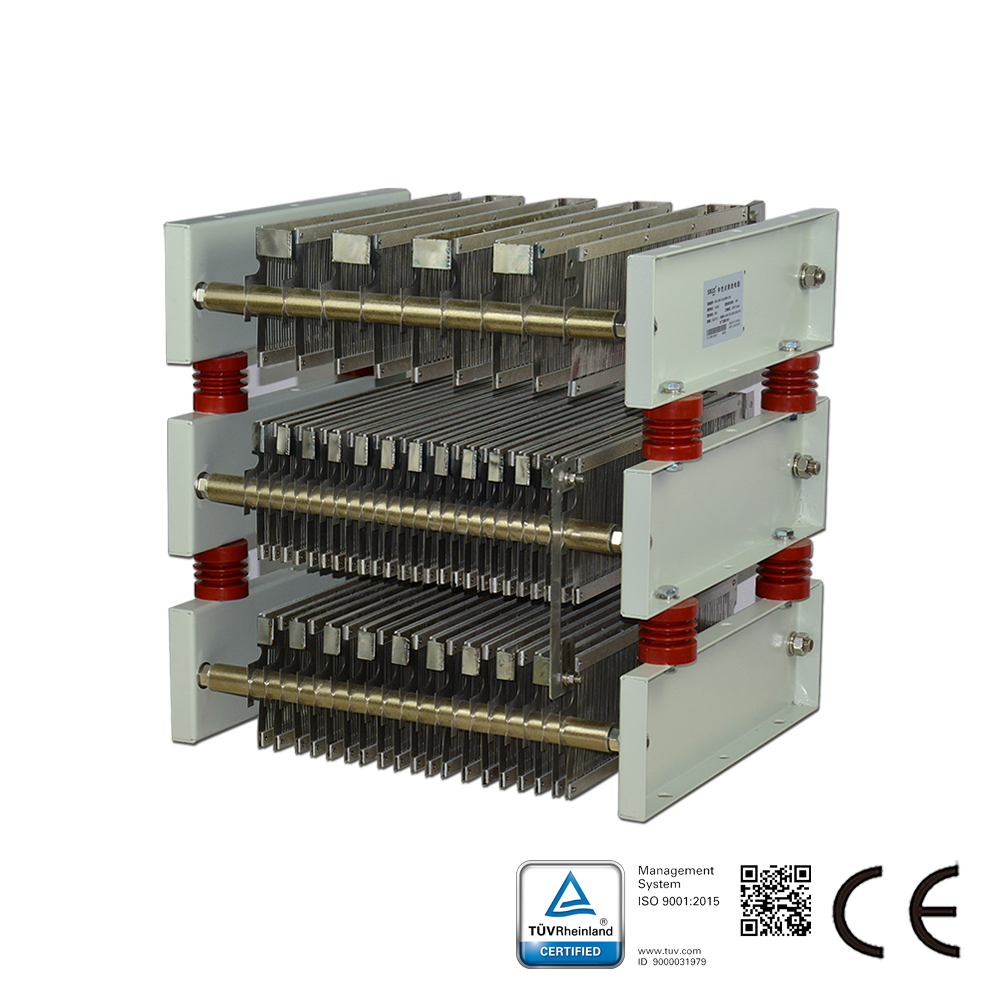

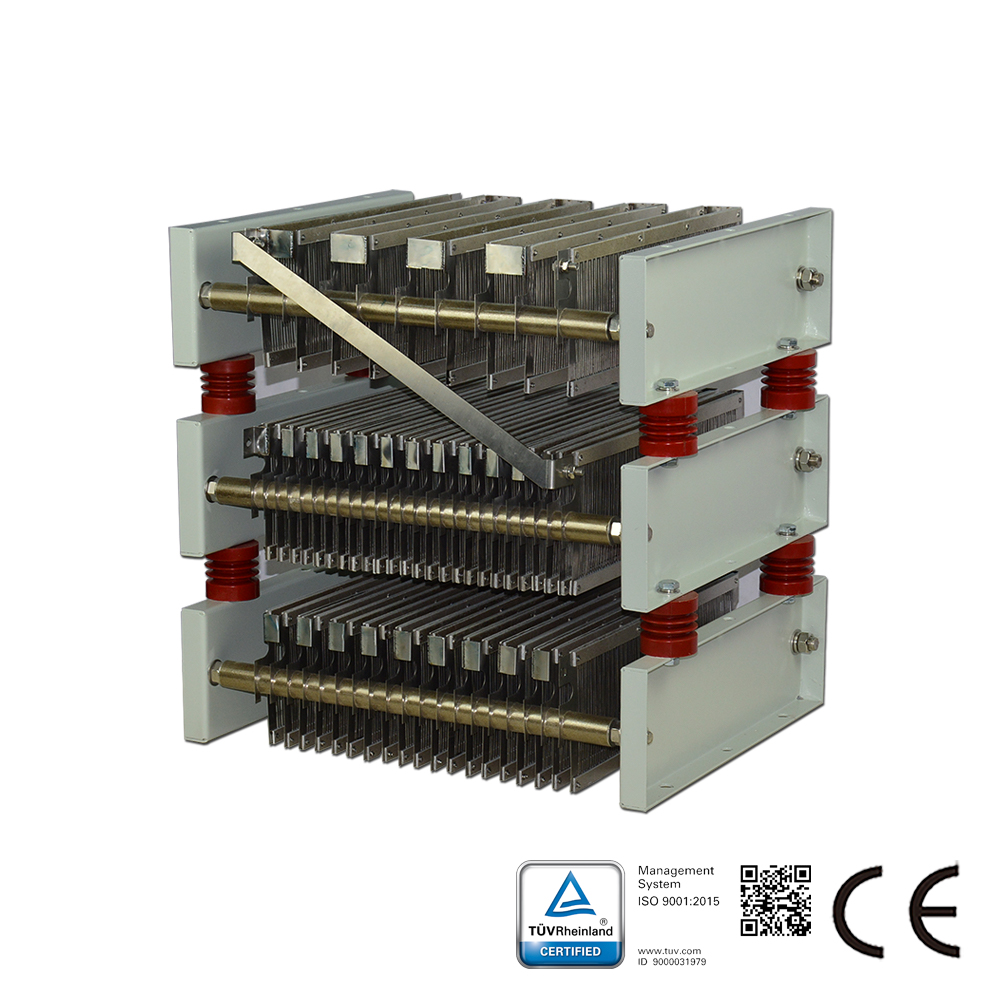

Unique steel grid structure for easy cooling

Large heat capacity of the resistor, and the power rating of the single resistor sheet can reach 1200 watts through a unique processing technology;

Small resistance deviation, and the manufacturing tolerance of the resistor sheet can be less than ±5%

The resistance of the resistor can be adjusted in a wide range, and the single resistor range is 0.005-11.7Ω.

The resistor sheet has strong insulation, and the dielectric strength of the resistance BANK and the supporting components can reach 8.3Kv;

In the hot state, the resistance change rate is small, the resistance sheet adopts imported stainless steel material, the temperature coefficient is low, and the thermal resistance resistance change rate can be no more than 20%;

Strong shock resistance, the resistor sheet is made of high temperature alloy material with strong corrosion resistance;

Cost-effective, compact structure, adjustable number of resistors, cost-effective.

中性點接地電阻的特點：

1. 本系列產品採用國外進口之不鏽鋼合金製作電阻元件，溫升係數低，電阻值變化率小；

2. 採用雙重絕緣，穩定性高；

3. 螺栓連接，便於拆卸，連接可靠；

4. 可搭配智慧監控裝置，能有效監控接地故障電流、電壓，並提供開關量及警報接點。

中性點接地電阻的應用：

中性點接地電阻主要用於110KV以下的輸配電系統，例如城市配電網、大型工業園區、發電廠、海上平台配電系統及大型化工廠。

當電網中性點不接地運行時，即使系統的電容電流不大，也可能因單相接地而產生間歇性弧光過電壓，使健全相的電位升高至足以破壞其絕緣水平的程度，甚至形成相間短路。若在變壓器的中性點（或借用接地變壓器引出中性點）串接一電阻器，以泄放間歇性弧光過電壓中的電磁能量，則可降低中性點電位，並減緩故障相恢復電壓的上升速度，從而減少電弧重燃的可能性，抑制電網過電壓的幅值，並使具選擇性的接地保護得以實現。
